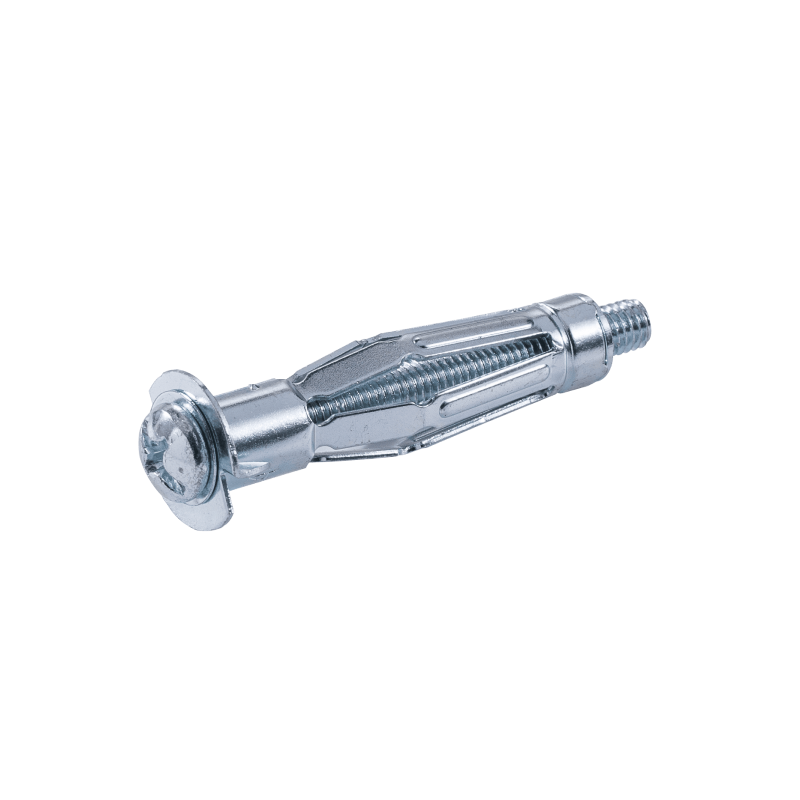

Hollow wall anchor
Product Introduction
Installation Guidelines
- Drill a hole in the wall.
- Insert the Hollow Wall Anchor into the wall. Using a screwdriver, turn the screw clockwise, until you feel resistance. This activates the wings behind the drywall.
- Unscrew the screw from the Hollow Wall Anchor.
- Insert the screw through the fixture you need to affix and screw clockwise until there is a strong resistance into the anchor.
specification sheet
Hollow Wall Anchor
| Size | Screw Size | Drill Size | Grip Range |
|---|---|---|---|
| 1/8 XS | 6-32 | 8 | UP TO 5 |
| 1/8 S | 6-32 | 8 | 5-10 |
| 1/8 SL | 6-32 | 8 | 3-20 |
| 1/8 L | 6-32 | 8 | 16-32 |
| 1/8 XL | 6-32 | 8 | 32-38 |
| 3/16 S | 10-24 | 10 | 3-16 |
| 3/16 L | 10-24 | 10 | 14-32 |
| 3/16 XL | 10-24 | 10 | 28-45 |
| 1/4 S | 1/4-20 | 12 | 3-16 |
| 1/4 L | 1/4-20 | 12 | 14-32 |
| 1/4 XL | 1/4-20 | 12 | 28-45 |

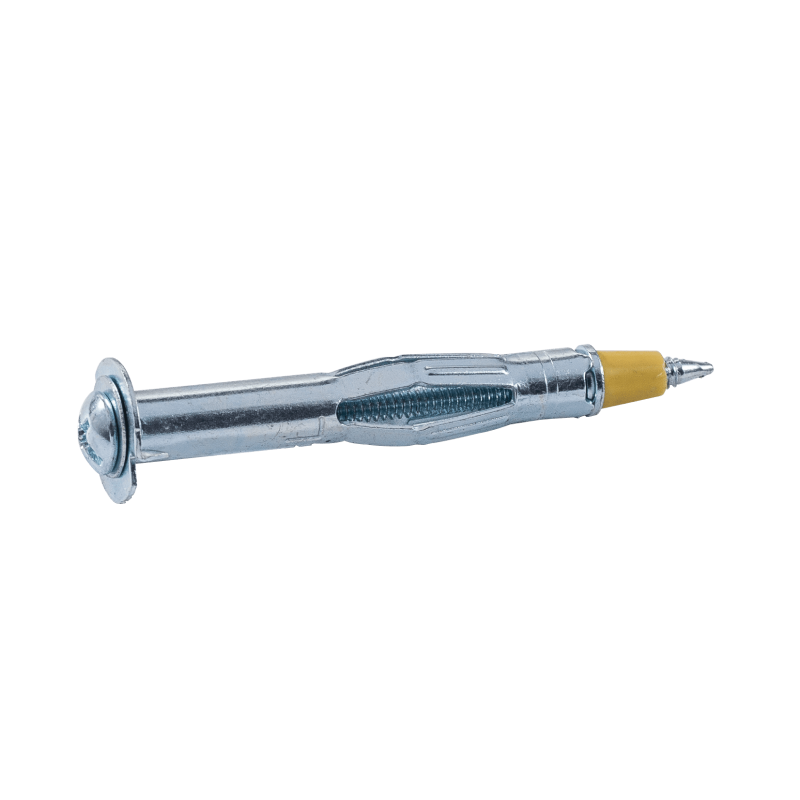

Hollow Wall Anchor, Drive Type
| Size | Screw Size | Drill Size | Grip Range |
|---|---|---|---|
| 1/8 XSD | 6-32 | 8 | UP TO 5 |
| 1/8 SD | 6-32 | 8 | 5-10 |
| 1/8 SLD | 6-32 | 8 | 3-20 |
| 1/8 LD | 6-32 | 8 | 16-32 |
Product Inquiry
| Image | Product Name |
|---|---|
|

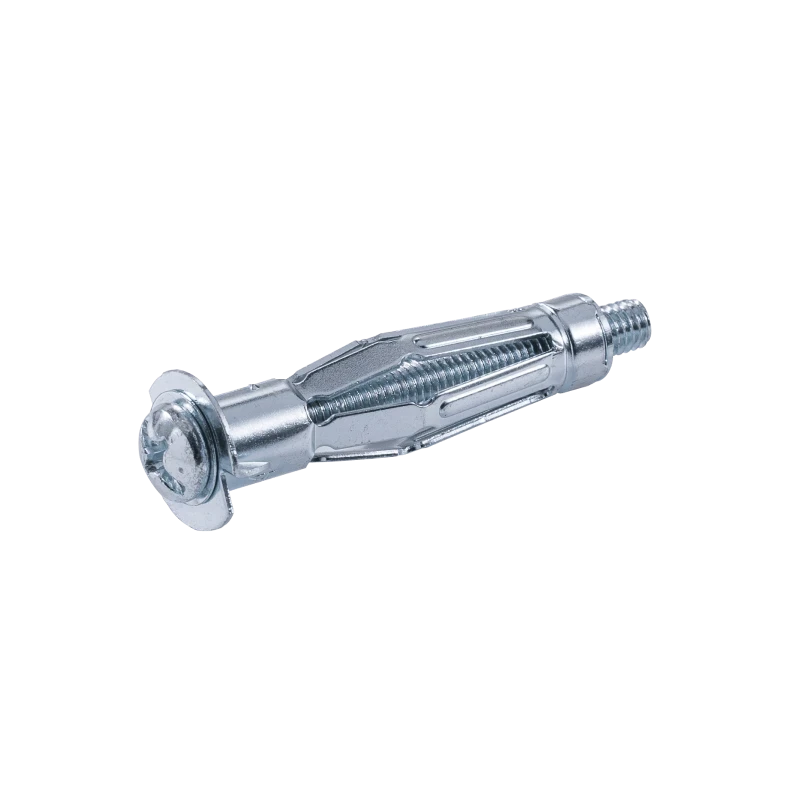

Hollow wall anchor |
