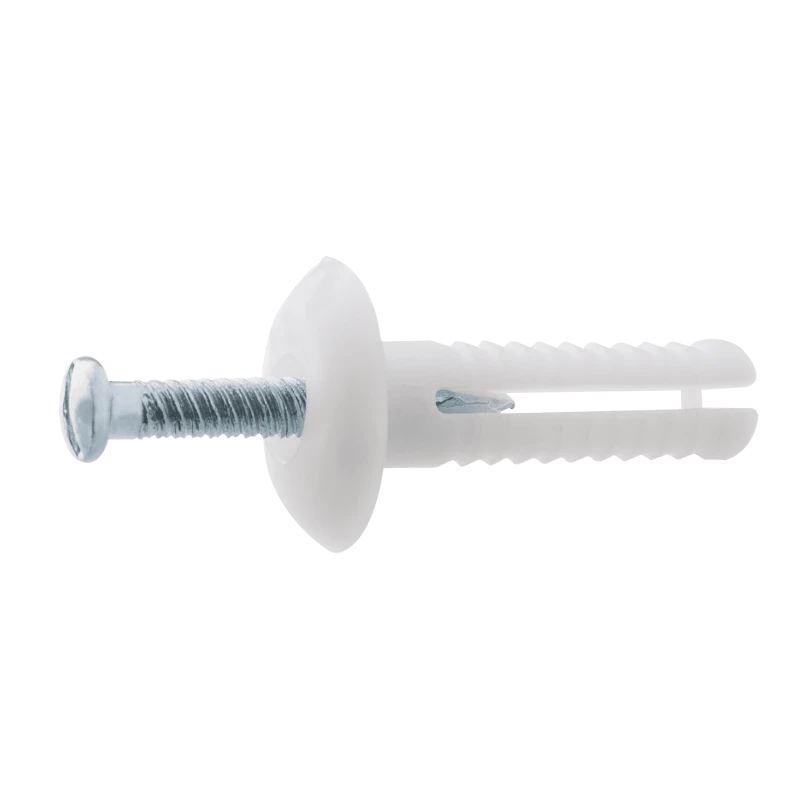

Nylon nail anchor
Nylon nail anchor
Nylon PA6 with carbon steel nail
Available in mushroom, round and flat head.
Available in mushroom, round and flat head.
Product Introduction

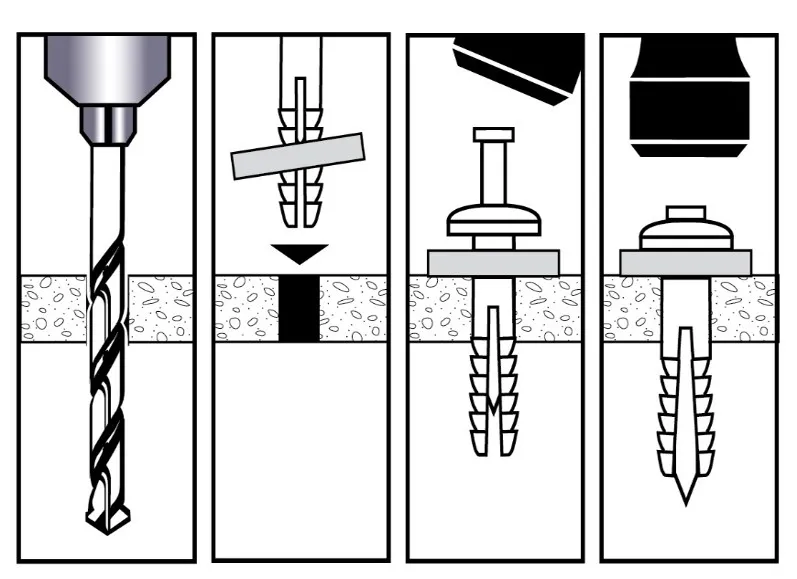

Installation Guidelines
- Using the proper diameter bit, drill a hole into the base material to a depth of at least 1/4" deeper than the anchor length.
- Blow the hole clean of dust and other material..
- Insert the anchor through the fixture.
- Using a hammer, tap the Nylon Nail into the wall until flush.
specification sheet
Nylon Nail Anchor
| Nylon Nail Anchor | Ultimate 4000 psi |
Allowable 4000 psi |
|||
|---|---|---|---|---|---|
| Anchor Size | Drill Dia. | Tension (lbs.) | Shear (lbs.) | Tension (lbs.) | Shear (lbs.) |
| 1/4x3/4 | 1/4" | 100 | 280 | 25 | 70 |
| 1/4x1 | 1/4" | 200 | 280 | 50 | 70 |
| 1/4x1-1/2 | 1/4" | 230 | 280 | 60 | 70 |
| 1/4x2 | 1/4" | 240 | 280 | 60 | 70 |
| 1/4x3 | 1/4" | 250 | 280 | 60 | 70 |
| *Allowable load capacities are calculated using an applied safety factor of 4:1 | |||||
