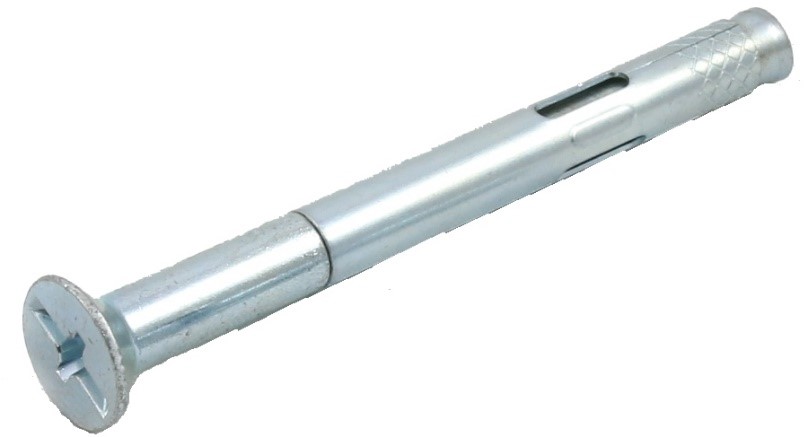

Sleeve anchor | flat head
Product Introduction

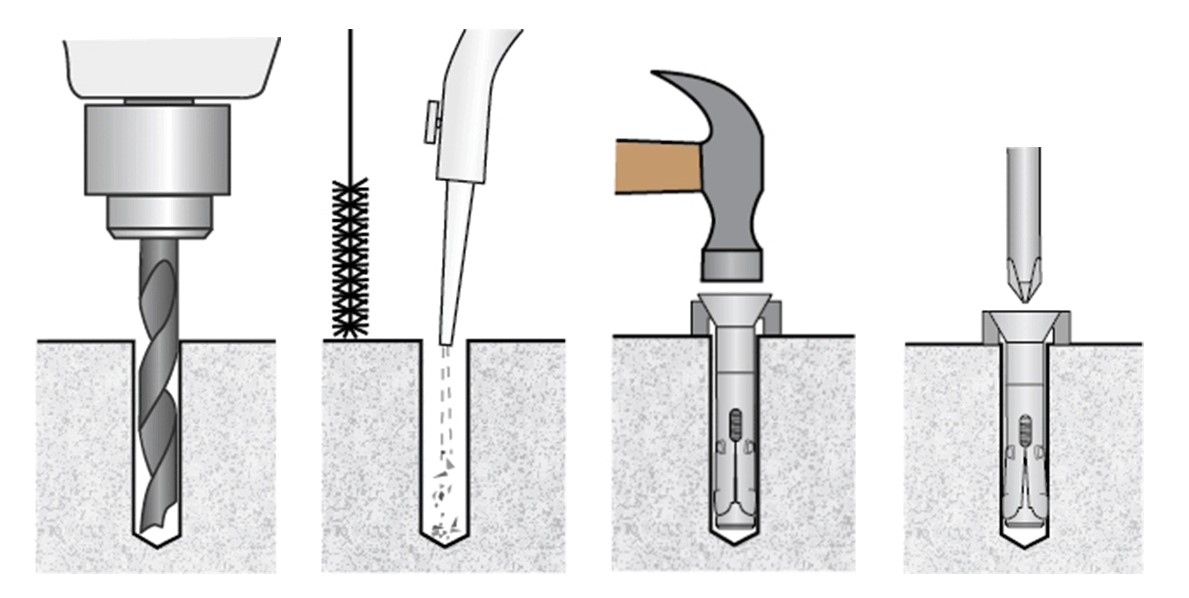

Installation Guidelines
- Drill a hole into the base material to the depth of at least 1/2" deeper than anchor length.
- Blow it clean using compressed air.
- Drive anchor through the fixture into the hole making sure the head, rests solidly against the fixture. Be sure the anchor is set to the required embedment depth.
specification sheet
Sleeve Anchor, Flat Head
| Size | Drill Dia. | Min. Embed. |
|---|---|---|
| 1/4x2 | 1/4" | 1-1/8" |
| 1/4x3 | 1/4" | 1-1/8" |
| 1/4x4 | 1/4" | 1-1/8" |
| 3/8x3 | 3/8" | 1-5/8" |
| 3/8x4 | 3/8" | 1-5/8" |
| 3/8x5 | 3/8" | 1-5/8" |
| 3/8x6 | 3/8" | 1-5/8" |
Product Inquiry
| Image | Product Name |
|---|---|
|

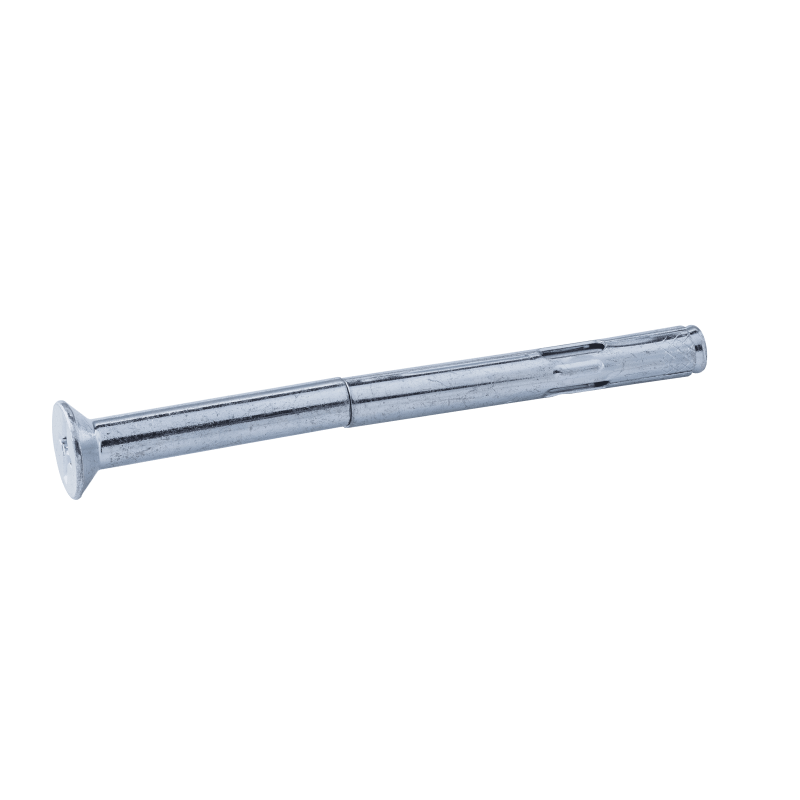

Sleeve anchor | flat head |
