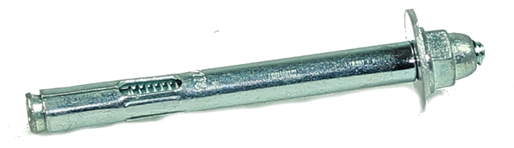

Sleeve anchor | steel acorn nut
Product Introduction

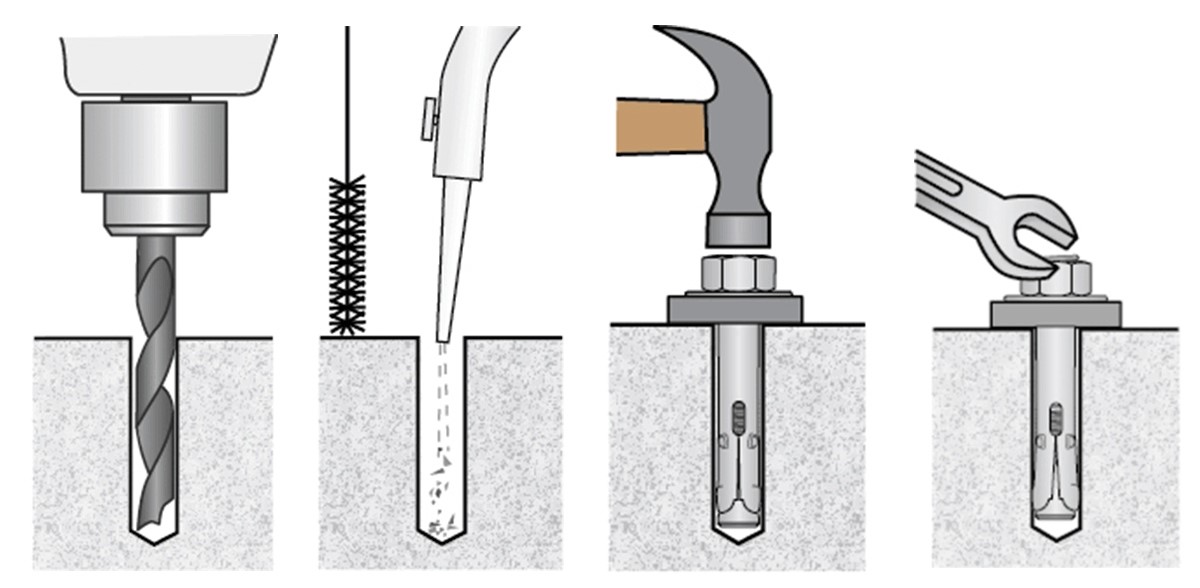

Installation Guidelines
- Drill a hole into the base material to the depth of at least 1/2" deeper than anchor length.
- Blow it clean using compressed air.
- Insert the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to required installation torque.
specification sheet
Sleeve Anchor, Steel Acorn Nut
| Size | Drill Dia. | Min. Embed. | Tightening Torque (ft-lbs) |
|---|---|---|---|
| 1/4X1-3/8 | 1/4" | 1-1/8" | 5 |
| 1/4X2-1/4 | 1/4" | 1-1/8" | 5 |
Product Inquiry
| Image | Product Name |
|---|---|
|

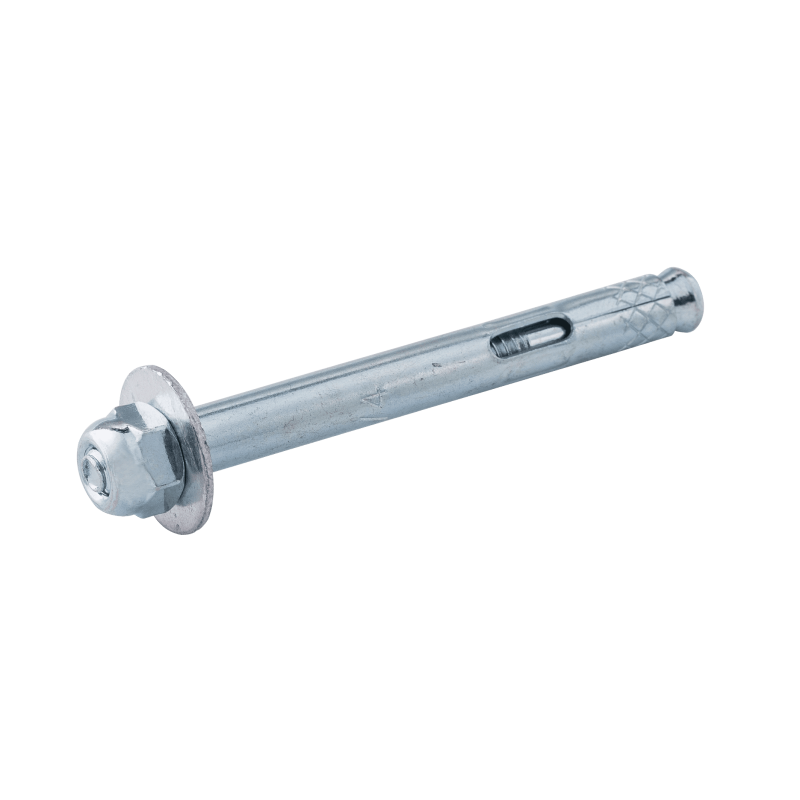

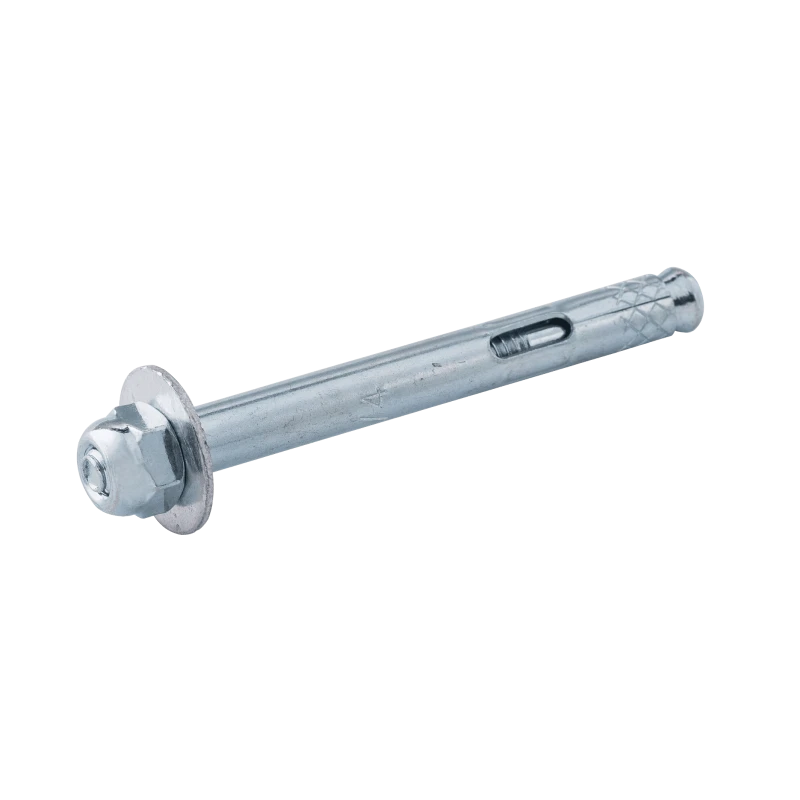

Sleeve anchor | steel acorn nut |
