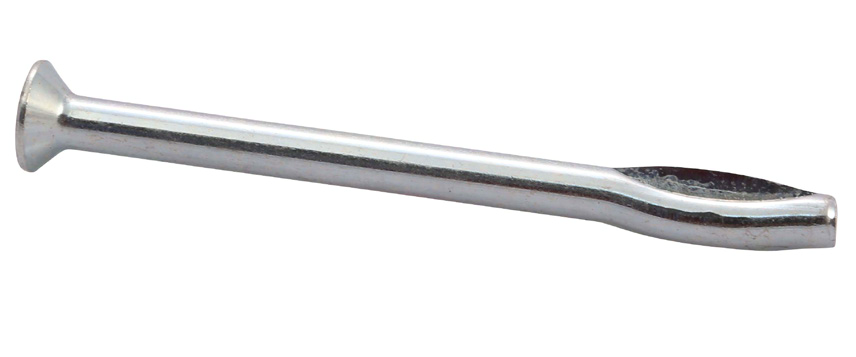

Split drive anchor
Product Introduction

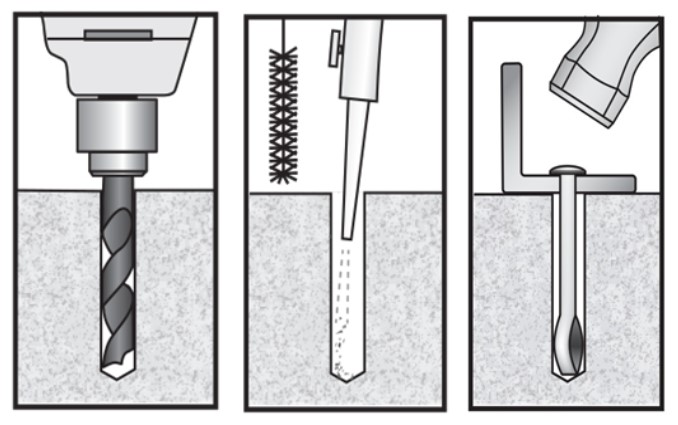

Installation Guidelines
- Drill the hole using a 1/4" drill bit. Drill the hole at least 1/2" deeper than the min. embedment depth.
- Clean the hole using compressed air and a brush.
- Drive anchor through the fixture into the hole making sure the head is set solidly against the fixture.
specification sheet
Split Drive Anchor
| Size | Drill Dia. | Min. Embedment |
|---|---|---|
| 1/4X1-1/2 | 1/4" | 1-1/8" |
| 1/4X2 | 1/4" | 1-1/8" |
| 1/4X2-1/2 | 1/4" | 1-1/8" |
| 1/4X3 | 1/4" | 1-1/8" |
| 1/4X3-1/2 | 1/4" | 1-1/8" |
| 1/4X4 | 1/4" | 1-1/8" |
Product Inquiry
| Image | Product Name |
|---|---|
|

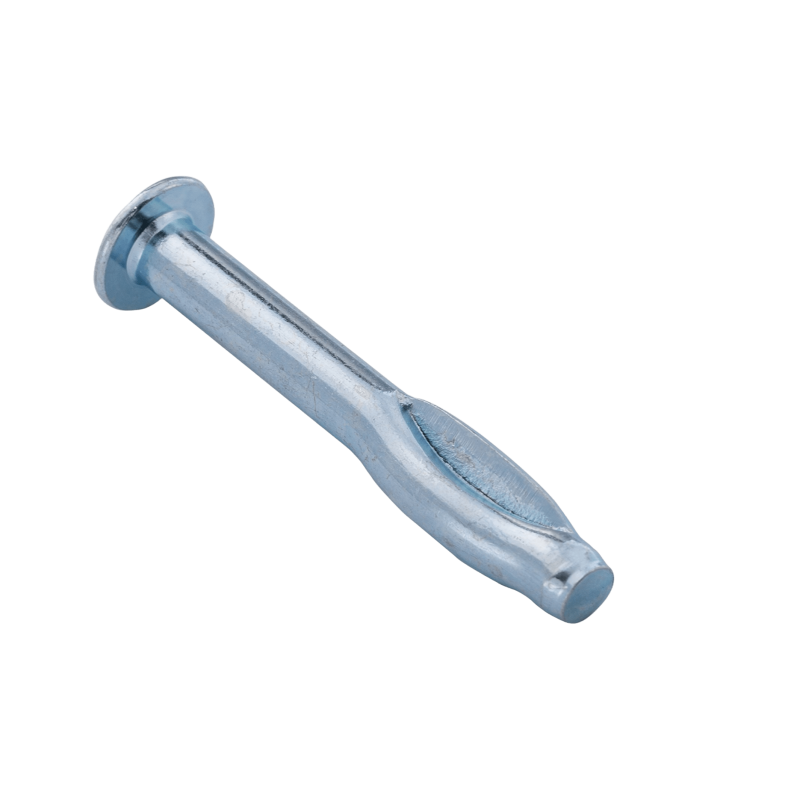

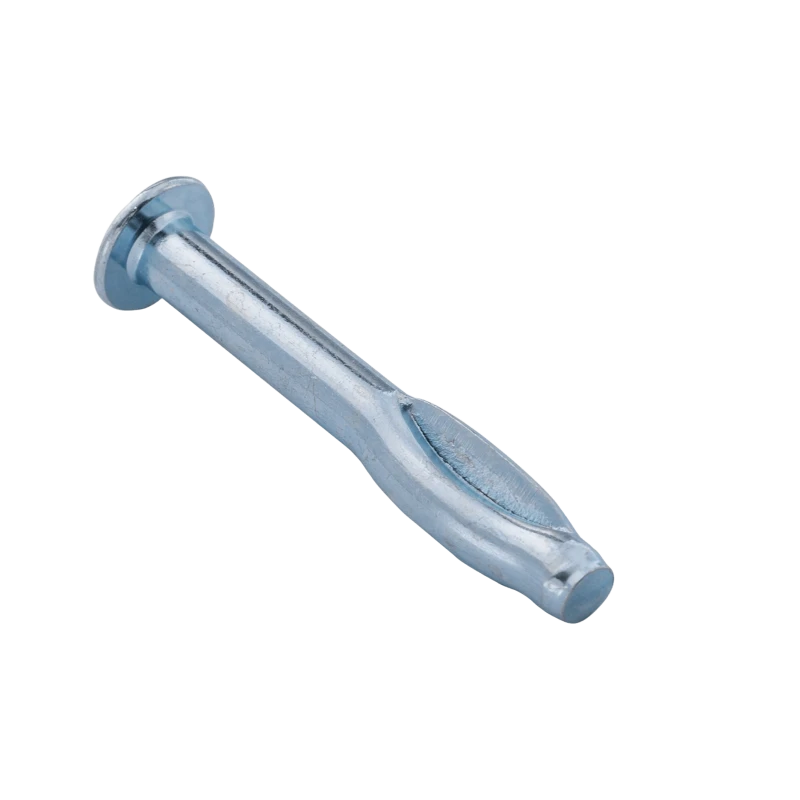

Split drive anchor |
