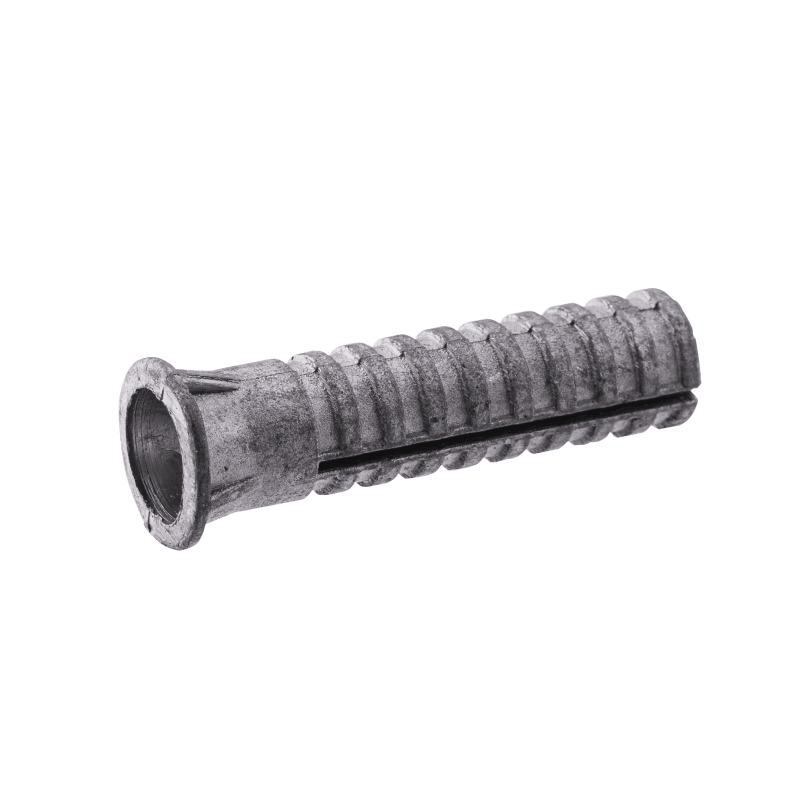

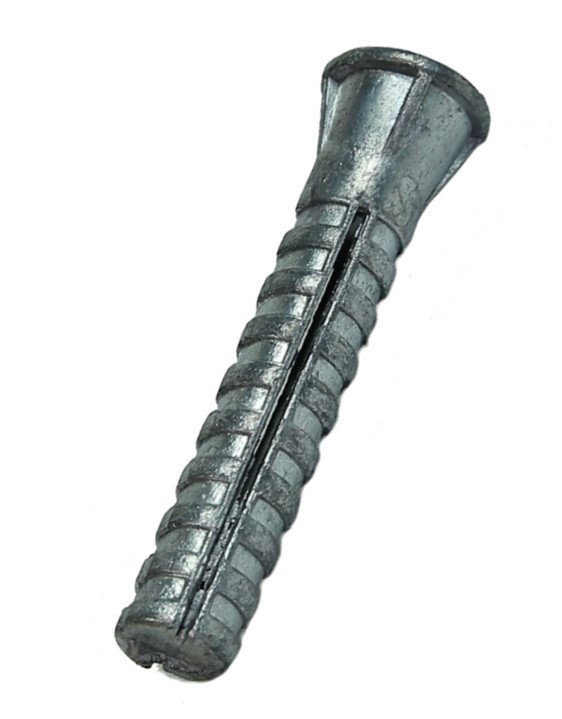

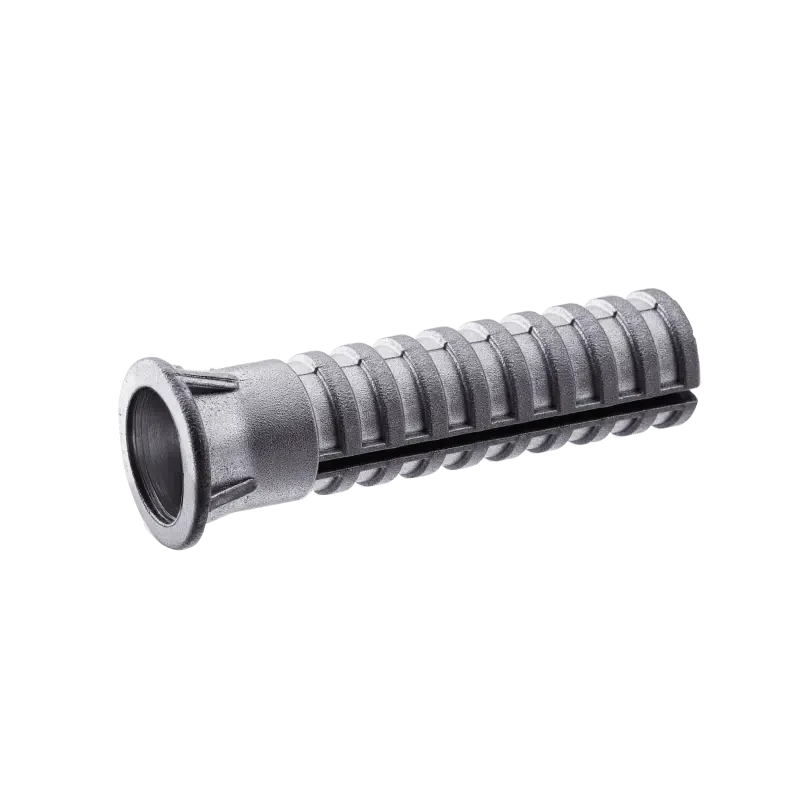

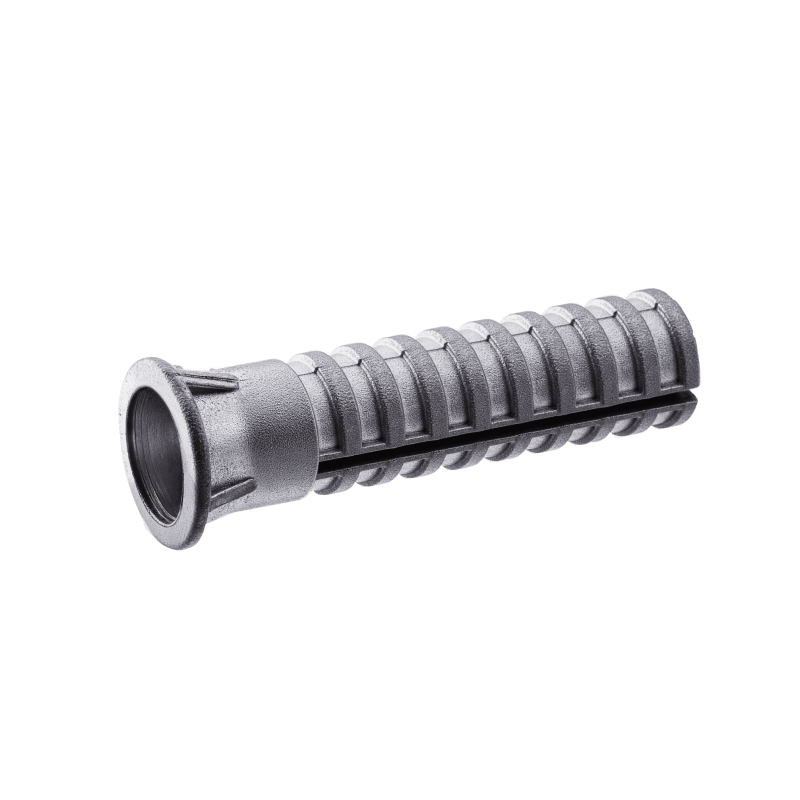

Wood screw lead anchor
Wood screw lead anchor
Lead Alloy
Product Introduction
Installation Guidelines
- Drill a hole into the base material to the depth of min embedment depth.
- Clean the hole using compressed air
- Insert anchor into the hole
- Insert the screw through the object you need to afix and insert them into the Lead Anchor
- Using a screwdriver, tighten the screw until there is a strong resistance.
specification sheet
Wood Screw Lead Anchor
| Size |
Drill Dia. |
Min. Embedment |
| 6-8X3/4 |
1/4" |
3/4" |
| 6-8X1 |
1/4" |
1" |
| 6-8X1-1/2 |
1/4" |
1 1/2" |
| 10-14X3/4 |
5/16" |
3/4" |
| 10-14X1 |
5/16" |
1" |
| 10-14X1-1/2 |
5/16" |
1 1/2" |
| 16-18X1 |
3/8" |
1" |
| 16-18X1-1/2 |
3/8" |
1 1/2" |
