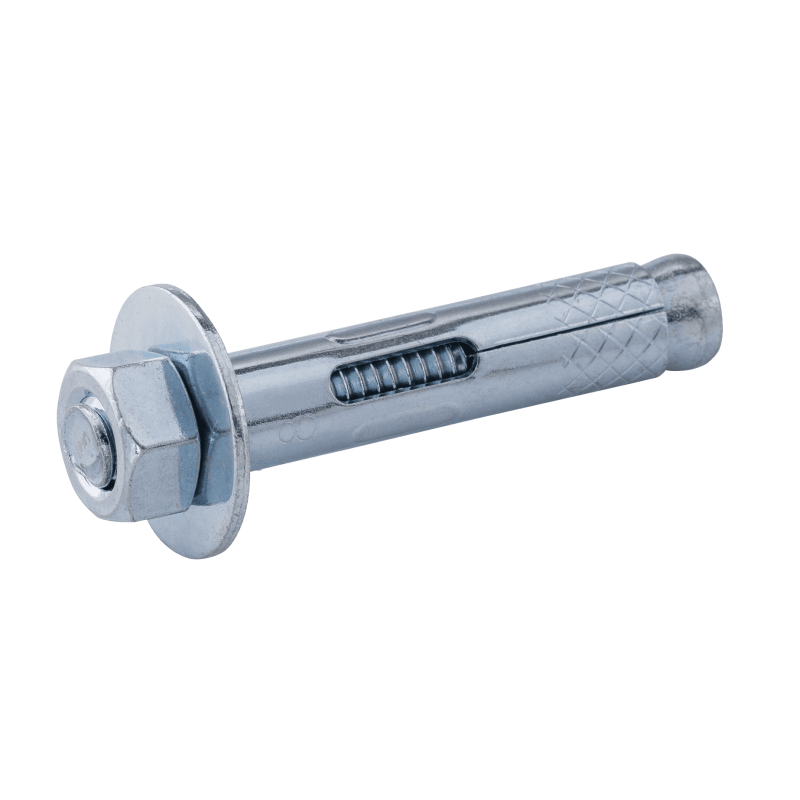

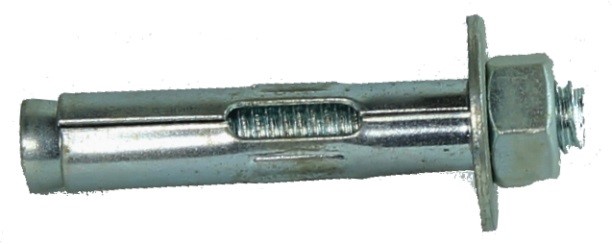

Sleeve Anchor | hex head
Product Introduction
Installation Guidelines
- Drill a hole into the base material to the depth of at least 1/2" deeper than anchor length.
- Blow it clean using compressed air.
- Insert the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to required installation torque.
specification sheet
Sleeve Anchor, hex head
| Size | Drill Dia. | Min. Embed. | Tightening Torque (ft-lbs) |
|---|---|---|---|
| 5/16X1-1/2 | 5/16" | 1-3/8" | 8 |
| 5/16X2-1/2 | 5/16" | 1-1/2" | 8 |
| 3/8X1-7/8 | 3/8" | 1-5/8" | 15 |
| 3/8X3 | 3/8" | 1-5/8" | 15 |
| 3/8X4 | 3/8" | 1-5/8" | 15 |
| 1/2X2-1/4 | 1/2" | 2-1/8" | 25 |
| 1/2X3 | 1/2" | 2-1/4" | 25 |
| 1/2X4 | 1/2" | 2-1/4" | 25 |
| 1/2X6 | 1/2" | 2-1/4" | 25 |
| 5/8X4-1/4 | 5/8" | 2-3/4" | 50 |
| 5/8X6 | 5/8" | 2-3/4" | 50 |
| 3/4X4 | 3/4" | 3-3/8" | 90 |
| 3/4X6-1/4 | 3/4" | 3-3/8" | 90 |
Product Inquiry
| Image | Product Name |
|---|---|
|

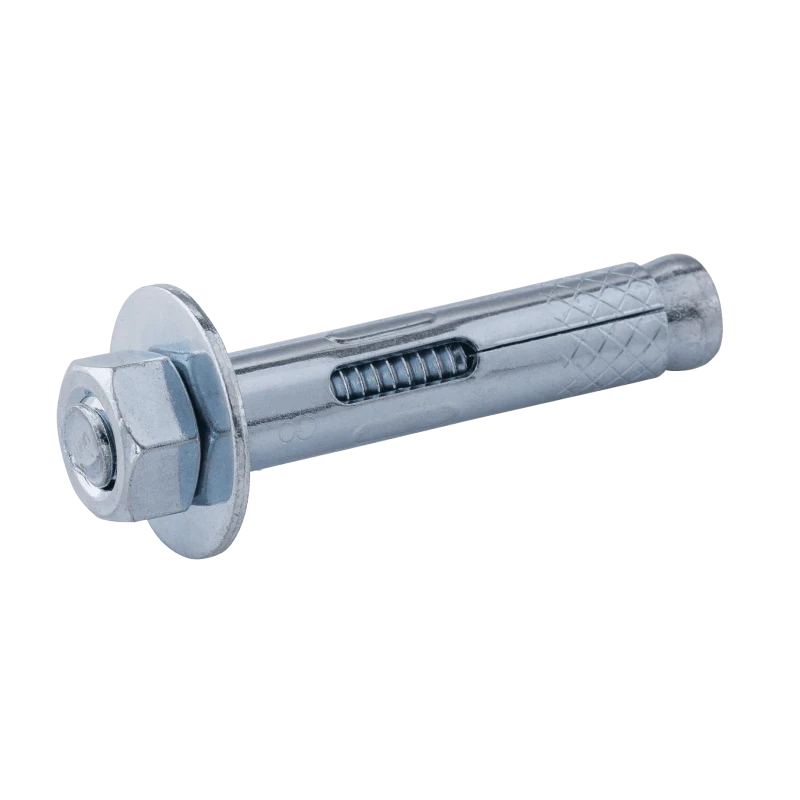

Sleeve Anchor | hex head |
