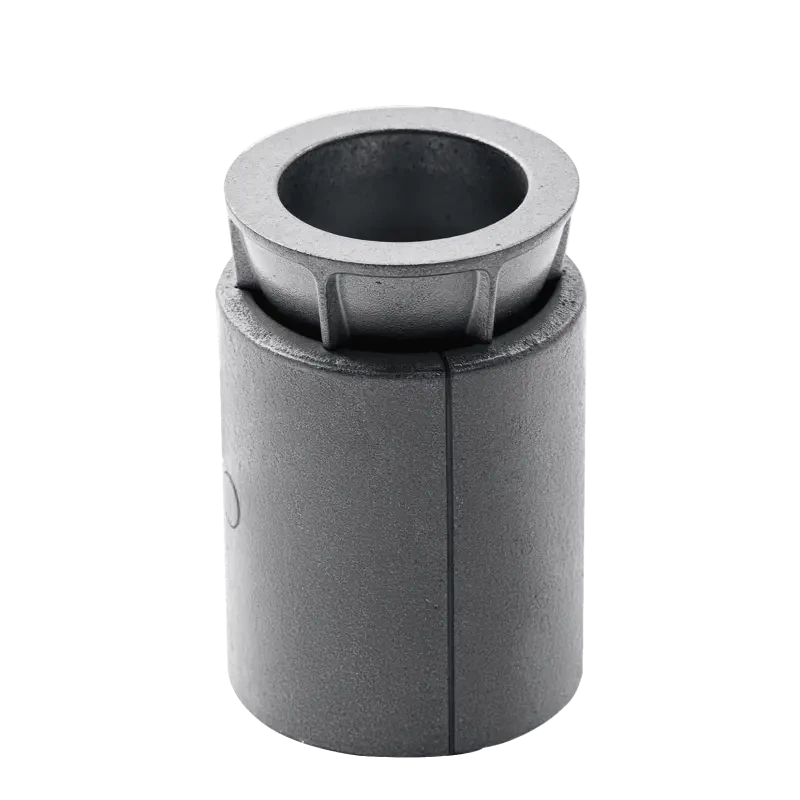

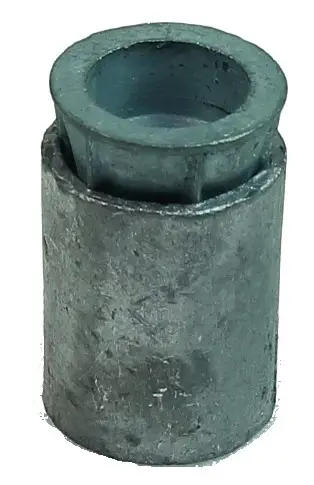

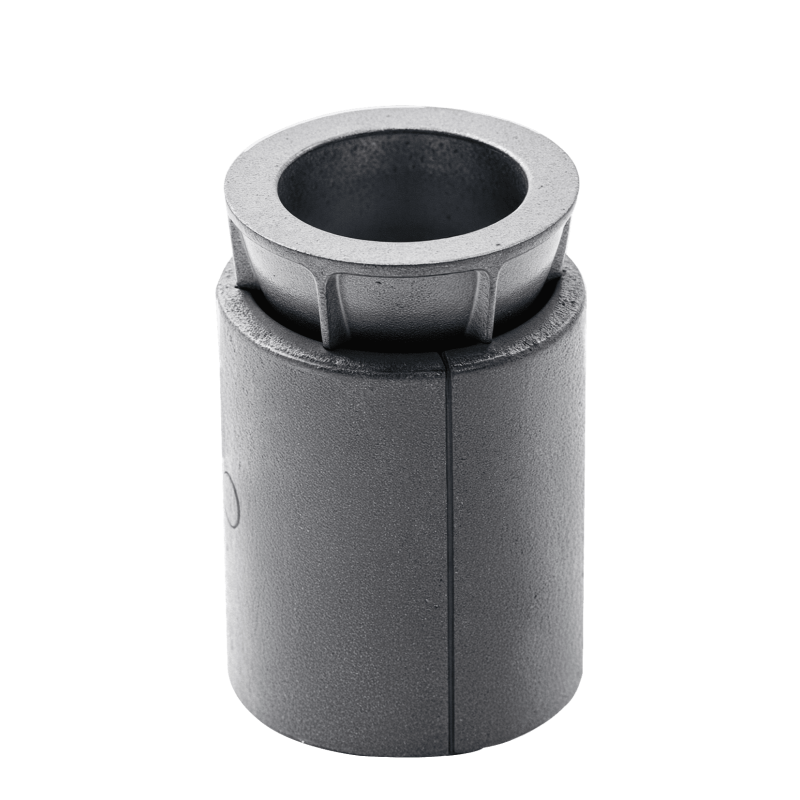

Machine screw anchor
Product Introduction
Installation Guidelines
- Drill the hole equal to the nominal diameter of the anchor. To assure full holding power, do not ream the hole or allow the drill to wobble.
- Drill the hole deeper than the intended embedment, but not closer than two diameters to the bottom (opposite) surface of the concrete.
- Clean the hole with a brush and compressed air.
- Insert anchor into the hole.
- Using setting tool, drive expander shield over cone.
- Position fixture, insert fastener and tighten.
specification sheet
Machine Screw Anchor
| Thread Size | Drill Dia. | Cone Length |
|---|---|---|
| #8-32 | 5/16" | 10.2 |
| 10-24 | 3/8" | 15.2 |
| 1/4-20 | 1/2" | 19 |
| 5/16-18 | 5/8" | 19.2 |
| 3/8-16 | 3/4" | 24.2 |
| 1/2-13 | 7/8" | 31.6 |
| 5/8-11 | 1" | 41.2 |
| 3/4-10 | 1-1/4" | 44.8 |
