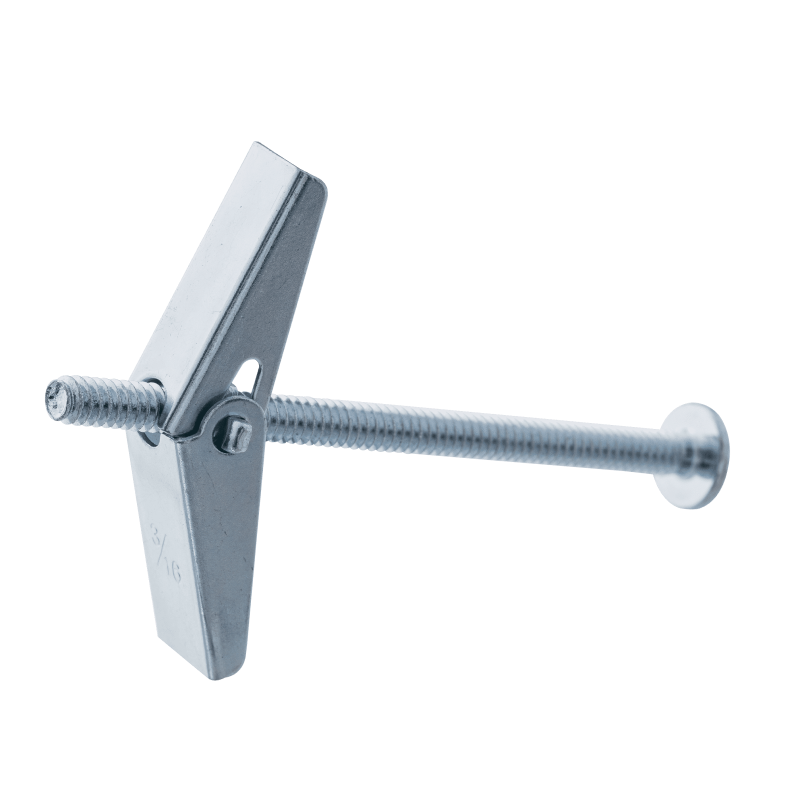

Toggle Bolt
Product Introduction

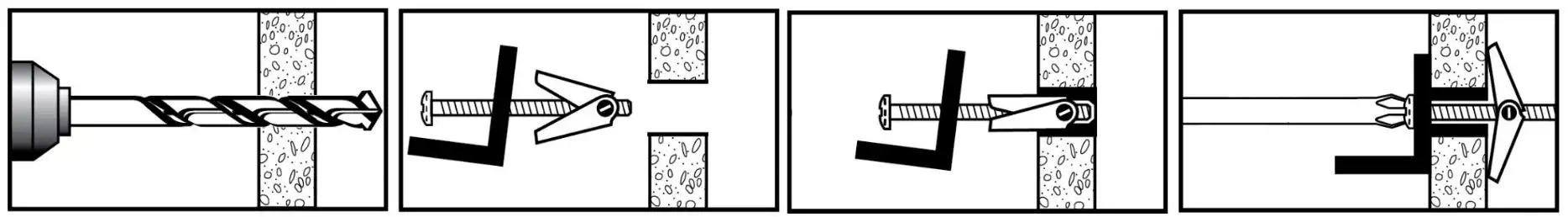

Installation Guidelines
- Drill an appropriate size hole according to drill dai above.
- Insert the Spring Toggle through the object you need to affix.
- Fold the wings and insert them into the drilled hole.
- Screw clockwise until there is a strong resistance.
specification sheet

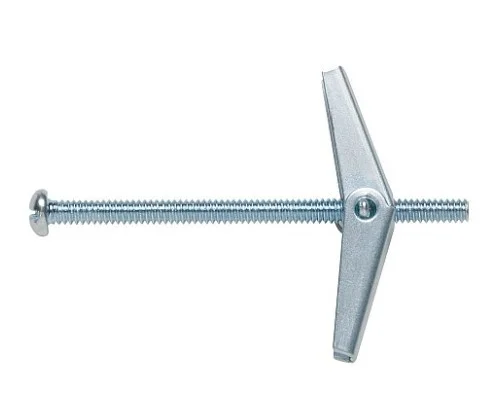

Toggle Bolt
| Size | Thread Size | Drill Dia. | |||
|---|---|---|---|---|---|
| 1/8 | 6-32 | 3/8 | |||
| 3/16 | 10-24 | 1/2 | |||
| 1/4 | 1/4-20 | 5/8 | |||
| 5/16 | 5/16-18 | 7/8 | |||
| 3/8" | 3/8-16 | 7/8 | |||
| 1/2" | 1/2-13 | 1-1/4 | |||
| Available in Mushroom, Round, and Flat Head. Available Bolt Length 2" up to 6" | |||||
Drywall 5/8" 16mm
| Ultimate (lbs) | Allowable (lbs) | ||||
|---|---|---|---|---|---|
| Tension | Shear | Tension | Shear | ||
| 180 | 180 | 45 | 45 | ||
| 220 | 220 | 55 | 55 | ||
| 250 | 260 | 63 | 65 | ||
| 265 | 275 | 66 | 68 | ||
| 280 | 290 | 70 | 72 | ||
| 380 | 370 | 95 | 92 | ||
| *Allowable load capacities are calculated using a safety factor of 4:1. | |||||
